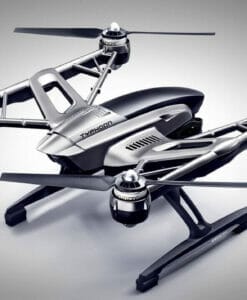

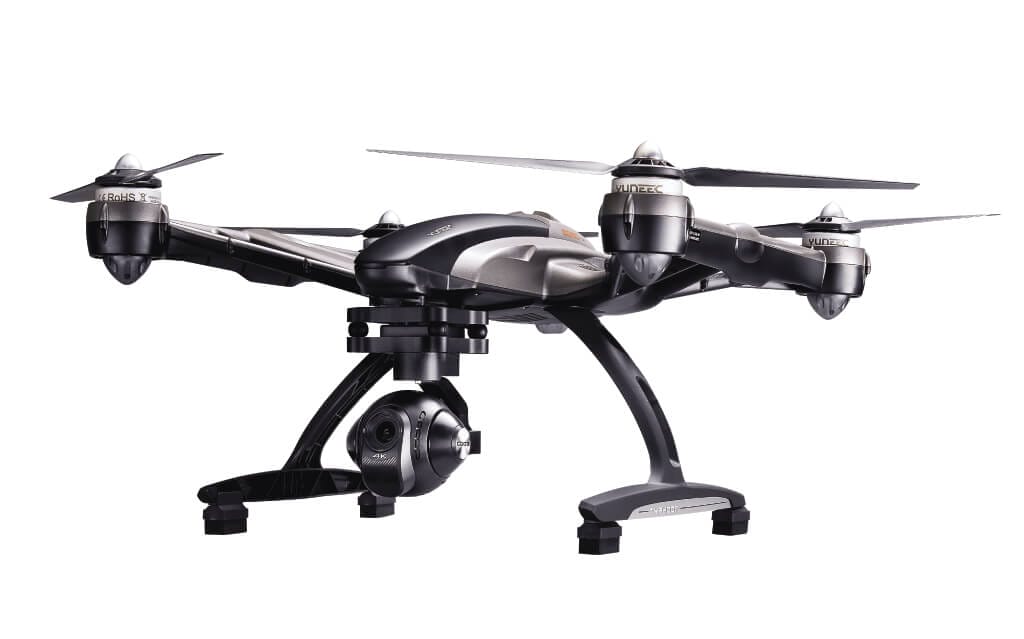

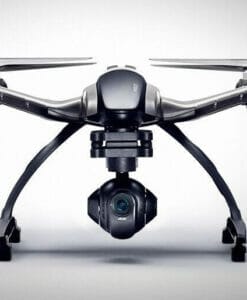

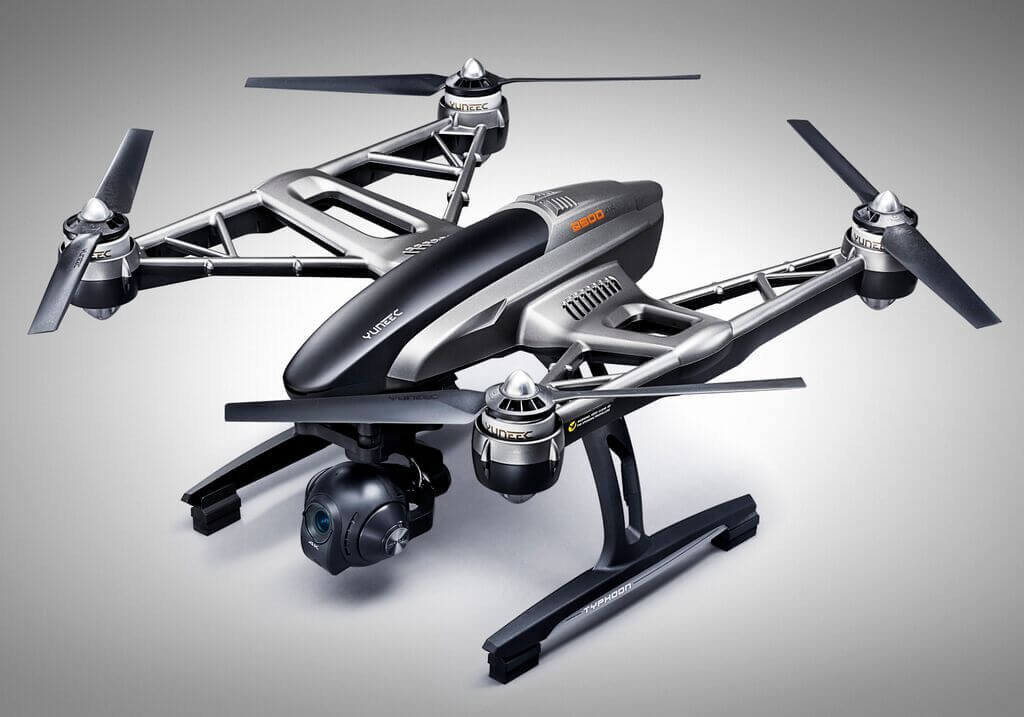

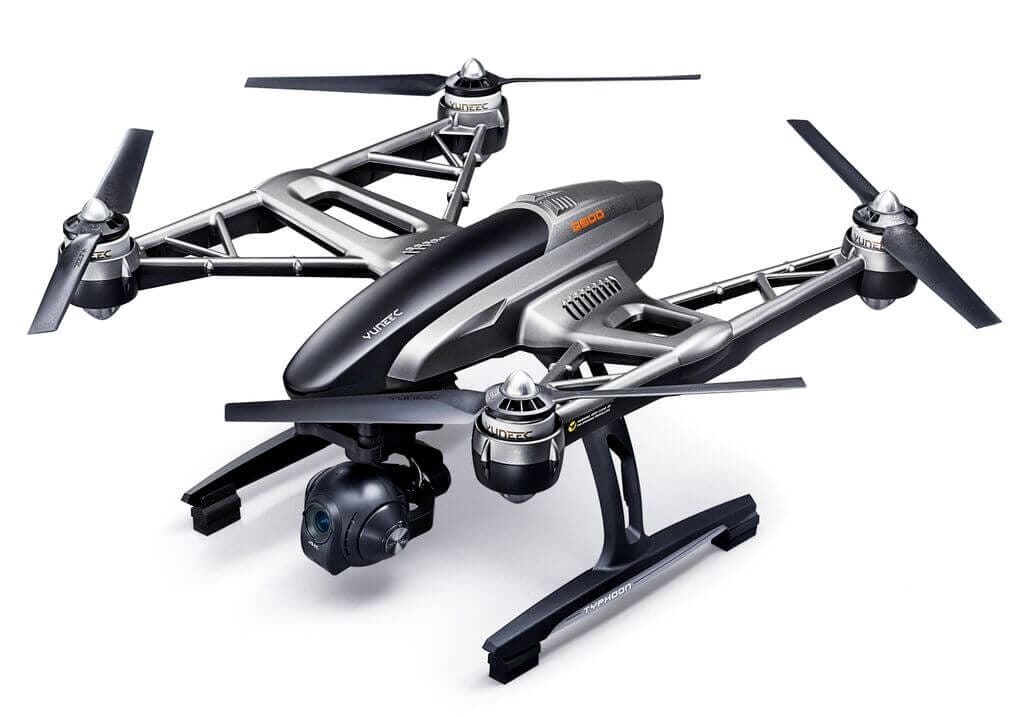

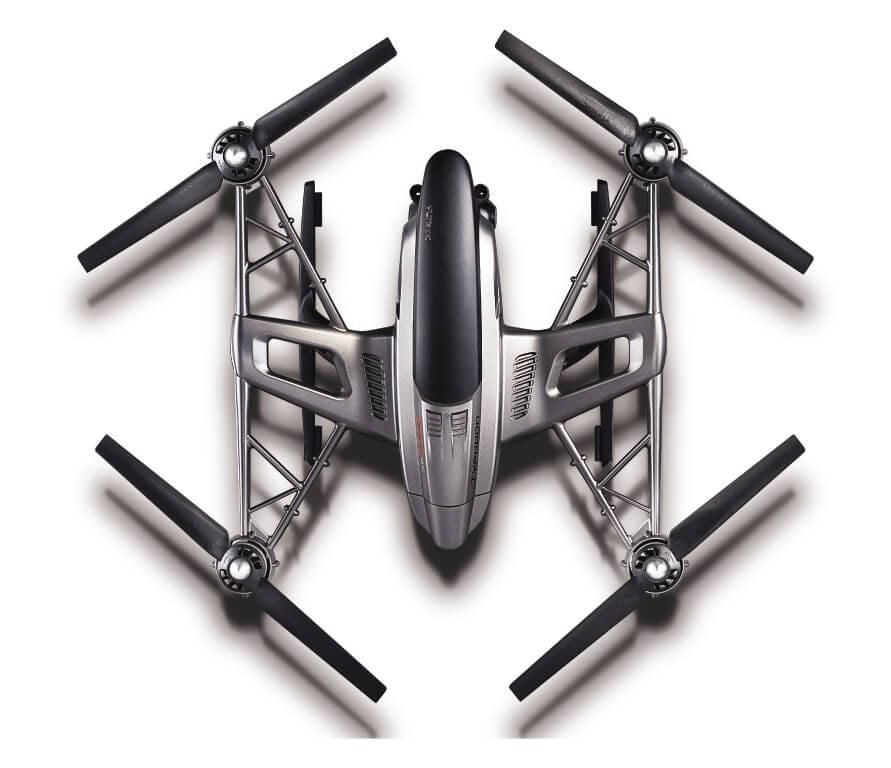

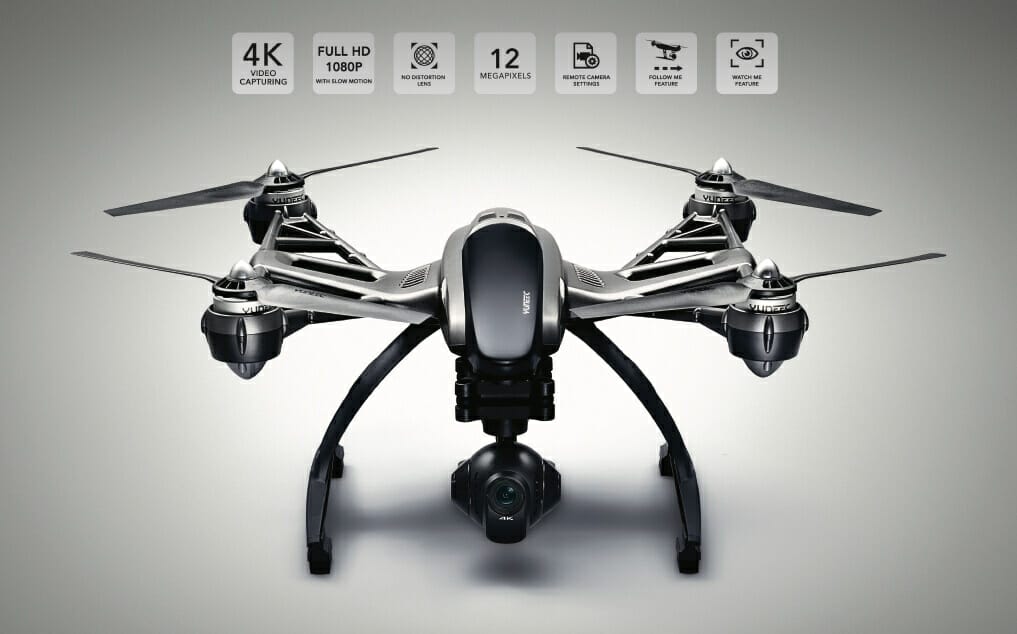

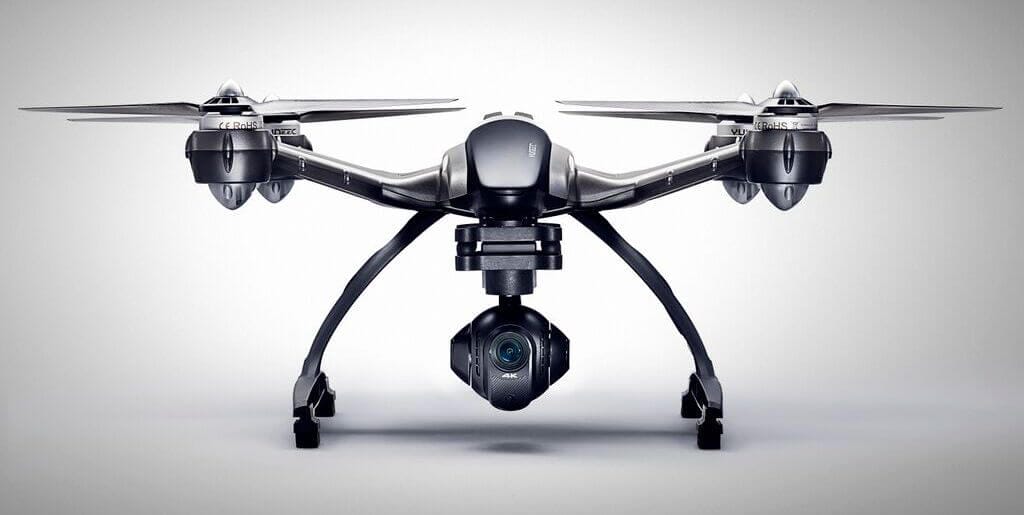

Typhoon Q500 4K Professional Aircraft Specifications

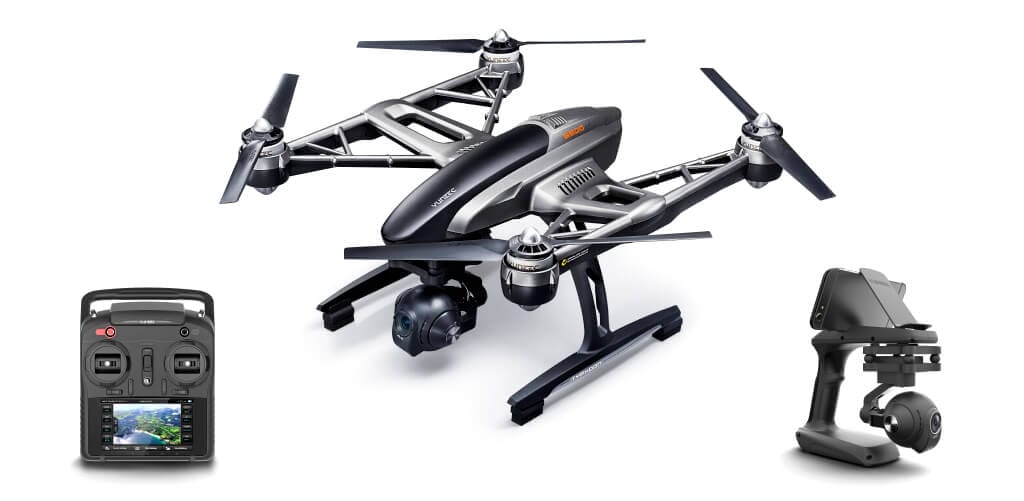

Q500 4K is a total imaging solution – for both aerial and ground photography and videography – which includes the TYPHOON copter, the powerful ST10+ 10-channel personal ground station, CGO3 4K stabilised camera and SteadyGrip handle. Watch Me and Follow Me functions significantly assist new pilots to master the skills of flying whilst making the art of aerial videography and photography easy, flexible and intuitive.

SteadyGrip combined with the 4K CGO3 gimbal camera allows the users to shoot fluid video with the Pitch Follow function. Real-time video and photos are viewed on an attached mobile device screen using the CGO3 APP.

Fly right out of the box after a charge!

• Flight Time
  • Up to 25 Minutes
• Dimensions:
  • 420 x 420 x 240mm (16.5 x 16.5 x9.5in)
• Diagonal Length Without Rotor Blades
  • 565mm (22.2 in)
• Propeller/Main Rotor Diameter
  • 330mm (13.0 in)
• Takeoff Weight with Battery and CGO3:
  • 1700g (60.0oz)
• Weight Without Battery and CGO3
  • 1130g (40.0 oz)
• Battery
  • 5400mAh 3S 11.1V LiPo (2 included)
• Charger
  • 3S 11.1V LiPo DC Balancing Smart Charger with AC Adapter (included)
• Transmitter
  • 10-channel 2.4GHz with 5.8GHz video downlink (included)
• Radio Control Frequency Band:
  • 2.4GHz CE Compliant (100mw)**

• 5 Flight Modes:
  • Smart (Follow Me, Watch Me) Angle and Return Home
• Maximum Flying Height**
  • Default 400 Feet Above Ground Level (Adjustable via the Q500 GUI)
• Maximum Rotational Velocity
  • 65°/s
• Maximum Roll Angle
  • 35°
• Maximum Climb Rate in Smart and Angle mode:
  • 3m/s
• Maximum Descent Rate in Smart and Angle mode:
  • 2m/s
• Operating Temperature Range:
  • -5°C to 60°C
• Maximum Flight Speed:
  • 8m/s
• Focusing System:
  • Aerial Optimized Fixed Focus
• Sensor:
  1/2.3″ (Ø11.4mm) CMOS
• Video Resolution:
  • UHD: 4K at 30FPS | 2.7K at 30FPS | 2.5K at 30FPS
  • Full HD: 1080p at 24 / 25 / 30 / 48 / 50 / 60 / 120FPS
  • HD: 720p at 24 / 25 / 30 / 48 / 50 / 60 / 120FPS

• Camera Lens:
  • 14mm (0.6in) / F2.8 (35mm/1.4in)
• Video Field of View:
  • 115° Zero Distortion
• Sound:
  • Internal Microphone (Switchable On/Off)
• Adjustable Camera Settings:
  • Video Resolution & White Balance, Auto or Manually adjustable ISO and Shutter Speed

• Control Angle Accuracy:
  • ±0.02°
• Shutter Speed:
  • 1/30 – 1/8000
• Transmission Band:
  • 5.8GHz : CE Compliant (25mw)

• Input/Operating Voltage:
  • 7.0V to 14.0V DC
• Video Transmission Distance/Range** (Optimum Conditions):
  • CE Compliance (25mw)**: Up to 400m (1312.34 ft) with ST10+
• Current Consumption/Operating Current:
  • 500mA (average) to 600mA (peak) @ 12.0V (7.2W max)
• Camera Angular Control Range:
  • Pitch between 0° to -90°
• Working Temperature:
  • -10°C to 50°C
• Storage (memory):
  • microSD Class 10 (4 to 128GB)
• Weight:
  • 185g (6.5 oz)
• Height:
  • 115mm (4.5 in)
• Depth:
  • 135mm (1.4 in)
• Width:
  • 74mm (2.9 in)

CGO3 Stabilised Camera

• Focusing System:Aerial Optimized Fixed Focus
• Sensor:1/2.3″ (Ø11.4mm) CMOS
• Video Resolution:
  • UHD: 4K at 30FPS | 2.7K at 30FPS | 2.5K at 30FPS
  • Full HD: 1080p at 24 / 25 / 30 / 48 / 50 / 60 / 120FPS
  • HD: 720p at 24 / 25 / 30 / 48 / 50 / 60 / 120FPS
• Photo Resolution:12.4 Megapixel
• Camera Lens:14mm (0.6in) / F2.8 (35mm/1.4in)
• Video Field of View:115° Zero Distortion
• Sound:Internal Microphone (Switchable On/Off)
• Adjustable Camera Settings:Video Resolution & White Balance, Auto or Manually adjustable ISO and Shutter Speed
• Control Angle Accuracy:±0.02°
• Shutter Speed:1/30 – 1/8000
• Transmission Band:5.8GHz CE Compliant (25mw)
• Input/Operating Voltage:7.0V to 14.0V DC
• Video Transmission Distance/Range** (Optimum Conditions):CE Compliant (25mw)**: Up to 400m (1312.34 ft) with ST10+
• Current Consumption/Operating Current:500mA (average) to 600mA (peak) @ 12.0V (7.2W max)
• Camera Angular Control Range:Pitch between 0° to -90°
• Working Temperature:-10°C to 50°C
• Storage (memory):microSD Class 10 (4 to 128GB)
• Weight:185g (6.5 oz)
• Height:115mm (4.5 in)
• Depth:135mm (1.4 in)
• Width:74mm (2.9 in)

ST10+ Personal Ground Station

• Operating System:Android™
• Number of Channels:10
• Control Transmission Distance/Range** (Optimum Conditions):CE Compliant (100mw)**: Up to 400m (1312.34 ft)
• Robust Radio Control Modulation:Yuneec Protocol
• Video link Frequency Band:5.8GHz (CE Comlient (25mw)
• Video Transmission Distance/Range** (Optimum Conditions):CE Compliance (25mw)**: Up to 300m (984.252 ft)
• Flight Systems Telemetry Data On Screen Display (OSD):Yes
• LED Backlit LCD Screen:Capacitive Multi-Touch 5.5”
• Transmitter Warning Feedback:Audible and Tactile (Vibrating)
• In-Built LiPo Battery Voltage / Capacity:3.6V/5200mAh 18.72Wh
• Transmitter Charger:Auto-Charge via Micro-B USB Cable with AC to 5V DC USB Power Supply

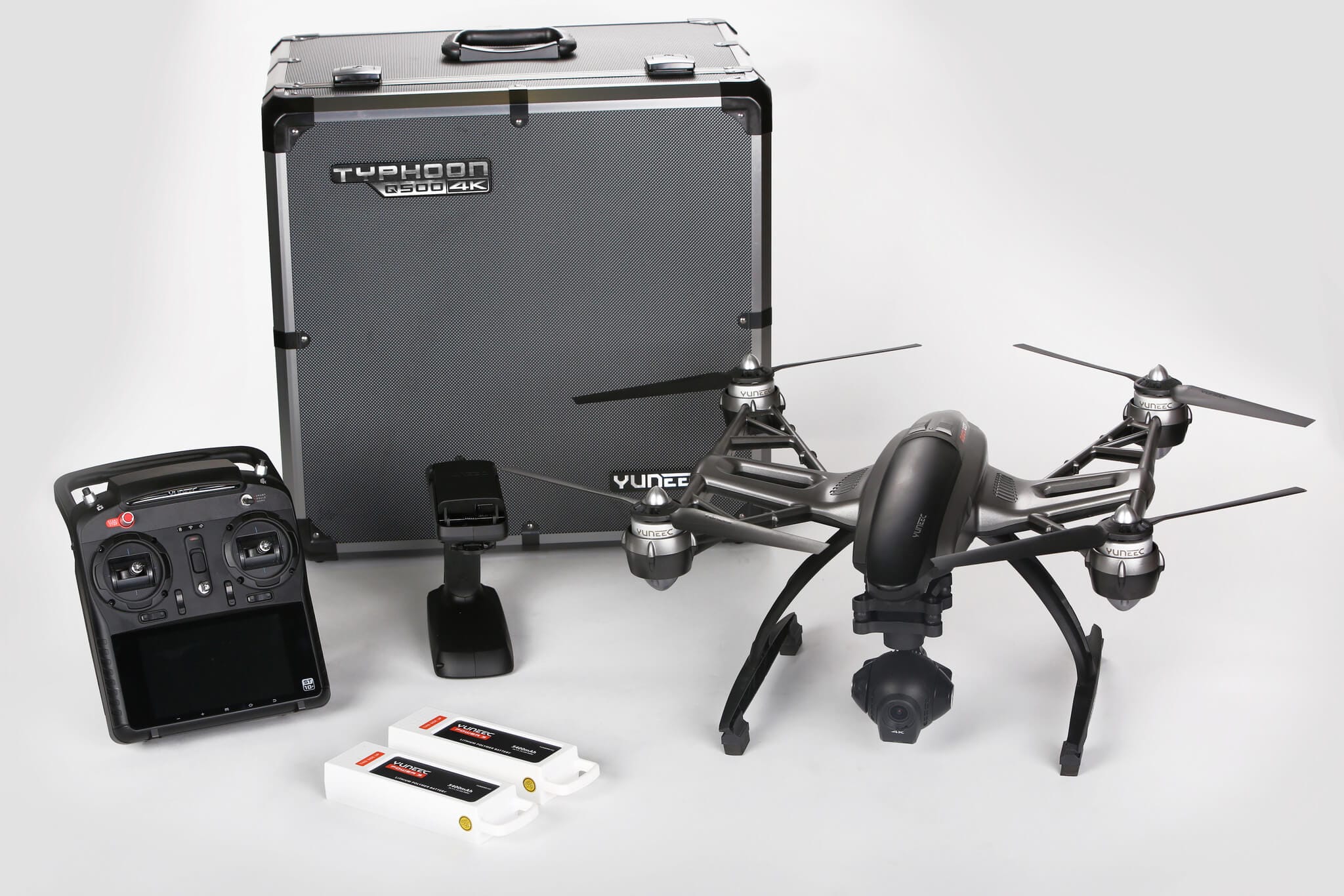

What’s In The Box?

• Q500 RTF Airframe with Pre-Installed CGO3
• ST10+ Transmitter and Personal Ground Station
• LiPo Battery – 3S 11.1V 5400mAh (x 2)
• Propellers/Rotor Blade (x2 sets)
• USB Interface/Programmer
• 8GB microSD Card with Adapter
• DC 3S 11.1V LiPo Balancing Charger
• AC to DC Adapter/Power Supply (UK Lead)
• USB AC to DC Tx Adapter/Charger (UK Plug)
• USB to Micro USB Cable
• 3S 11.1V LiPo Balance Connector & Charge Lead
• DC Automobile Accessory Socket / Cigarette Lighter Adapter
• ST10+ LCD Screen Sun Shade
• ST10+ Neck Strap
• Motor Holder/Propeller Installation Tool
• Hard Carry Case
• ProAction SteadyGrip (Included – Boxed Separately)

IMPORTANT WARNING**Local Laws Apply : Maintain Visual Line of Sight of Aircraft at All Times
