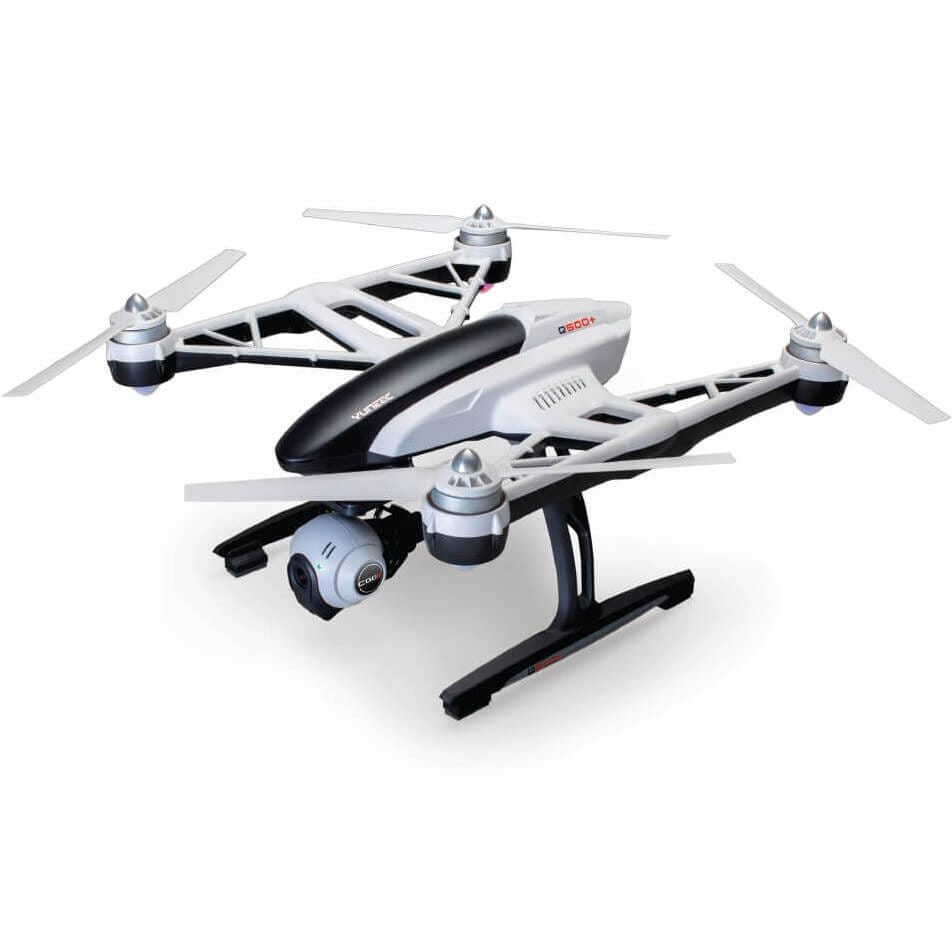

Typhoon Q500+ Aircraft

The Q500+ Typhoon is a great looking, complete aerial photography and videography (APV) system which includes integrated FPV (First Person View) transmitter and SteadyGrip handle for stabilised ground videos and photos.

Ready to fly with everything included – No additional accessories, mobile phone or tablet needed to fly:

Fly right out of the box after a charge!

• Flight Time:
  • Up to 25 Minutes
• Dimensions:
  • 420 x 420 x 240mm (16.5 x 16.5 x 9.5in)
• Diagonal Length Without Rotor Blades:
  • 565mm (22.2 in)
• Propeller/Main Rotor Diameter:

  • 330mm (13.0 in)
• Takeoff Weight With Battery and CGO2+:

  • 1700g (60.0 oz)
• Weight Without Battery and CGO2+:

  • 1130g (40.0 oz)
• Battery:

  • 5400mAh 3S 11.1V LiPo (1 included)
• Charger:

  • 3S 11.1V LiPo DC Balancing Smart Charger with AC Adapter
• Transmitter:

  • 10-channel 2.4GHz with 5.8GHz video downlink
• Radio Control Frequency Band:

  • 2.4GHz : CE Compliant (100mw)**
• 5 Flight Modes:

  • Smart (Follow Me, Watch Me) Angle and Return Home
• Maximum Flying Height**:

  • Default 400 Feet Above Ground Level (AGL)**
• Maximum Rotational Velocity:

  • 65°/s
• Maximum Bank Angle:

  • 35°
• Maximum Climb Rate in Smart and Angle mode:

  • 3m/s
• Maximum Descent Rate in Smart and Angle mode:

  • 2m/s

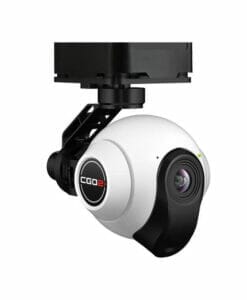

CGO2+ Gimbal Camera

• Focusing System:

  • Aerial Optimized Fixed Focus
• Video Resolution:

  • FULL HD 1080p – Adjustable 48/50/60 FPS
• Sound:

  • Internal Microphone (Switchable On/Off)
• Photo Resolution:

  • 16 Megapixels
• Video Field of View:

  • 115° Zero Distortion
• Control Angle Accuracy:

  • ±0.02°
• White Balance:

  • Automatic Smart White Balance
• Transmission Band:

  • 5.8GHz
• Input/Operating Voltage:

  • 7.0V to 14.0V DC
• Video Transmission Distance/Range** (Optimum Conditions):

  • CE Compliant (25mw)**: Up to 400m (1312.34 ft) with ST10+
• Current Consumption/Operating Current:

  • 500mA (average) to 600mA (peak) @ 12.0V (7.2W max)
• Camera Angular Control Range:

  • Pitch Between 0° to -90°
• Working Temperature:

  • 0°C-50°C
• Storage (memory):

  • microSD Class 10 (4 to 128GB)
• Weight:

  • 185g (6.5 oz)
• Height:

  • 115mm (4.5 in)
• Depth:

  • 135mm (1.4 in)
• Width:

  • 74mm (2.9 in)

ST10+ Personal Ground Station

• Operating System:

  • Android™
• Number of Channels:

  • 10
• Radio Contro Frequency Band:
  • 2.4GHz CE Compliant (100mw)
• Control Transmission Distance/Range** (Optimum Conditions):

  • CE Compliant (100mw)**: Up to 400m (1312.34 ft)
• Robust Radio Control Modulation:

  • Yuneec Protocol
• Video link Frequency Band:

  • 5.8GHz (25mw)

• Video Transmission Distance/Range** (Optimum Conditions):

  • CE Compliant (25mw)**: Up to 300m (984.252 ft)
• Flight Systems Telemetry Data On Screen Display (OSD):

  • Yes
• LED Backlit LCD Screen:

  • Capacitive Multi-Touch 5.5”
• Transmitter Warning Feedback:

  • Audible and Tactile (Vibrating)
• In-Built LiPo Battery Voltage / Capacity:

  • 3.6V/5200mAh 18.72Wh
• Transmitter Charger:

  • Auto-Charge via Micro-B USB Cable with AC to 5V DC USB Power Supply

Whats In The Box?

• Q500 RTF Airframe with Pre-Installed CGO2+
• ST10+ Transmitter and Personal Ground Station
• LiPo Battery 3S 11.1V 5400mAh (x 1)

• Propellers/Rotor Blade (2 sets)
• USB Interface/Programmer
• 8GB microSD Card with Adapter
• DC 3S 11.1V LiPo Balancing Charger
• AC to DC Adapter/Power Supply (UK Lead)
• USB AC to DC Tx Adapter/Charger (UK)
• USB to Micro USB Cable
• 3S 11.1V LiPo Balance Connector & Charge Lead
• DC Automobile Accessory Socket / Cigarette Lighter Adapter
• ST10+ LCD Screen Sun Shade/Shield
• ST10+ Neck Strap
• Motor Holder/Propeller Installation Tool
• ProAction SteadyGrip (Included – Boxed Separately)

IMPORTANT WARNING**Local Laws Apply : Maintain Visual Line of Sight of Aircraft at All Times
